KW04-91
產品描述

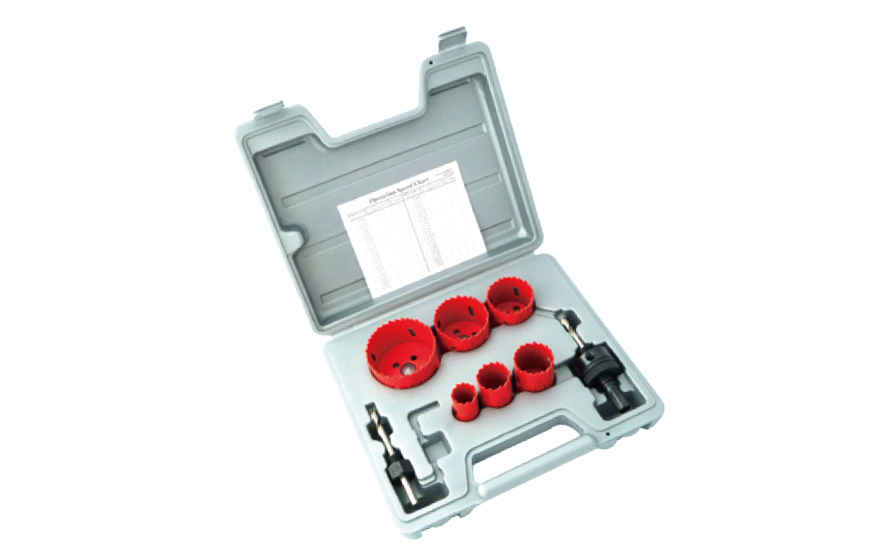

攜帶式套裝組方便攜帶、輕鬆更換,讓你一次備齊所有需要的尺寸
規格表
產品編號產品名稱產品描述產品圖示
KW04-9107
迷你盒裝7件組
內含尺寸
7/8"(22mm), 1"(25mm), 1-1/4"(32mm),
1-3/8"(35mm), 1-1/2"(38mm)
鑽軸 (Arbor) KW04-9001
轉接頭(Adapter) KW04-9080
KW04-9108
電工套件8件組
內含尺寸
7/8"(22mm), 1-1/8"(29mm), 1-3/8"(35mm),
1-3/4"(44mm), 2"(51mm), 2-1/2"(64mm)
鑽軸 (Arbor) KW04-9001, KW04-9002
六角板手(Hex Key) KW04-9081
KW04-9109
管道工具9件組
內含尺寸
3/4"(19mm), 7/8"(22mm), 1-1/8"(29mm), 1-1/2"(38mm),
1-3/4"(44mm), 2-1/4"(57mm)
鑽軸 (Arbor) KW04-9002, KW04-9006
六角板手(Hex Key) KW04-9081
KW04-9111
門鎖工具11件組
內含尺寸
3/4"(19mm), 7/8"(22mm), 1"(25mm), 1-3/8"(35mm),
1-1/2"(38mm), 1-5/8"(41mm), 1-3/4"(44mm), 2-1/8"(54mm)
鑽軸 (Arbor) KW04-9001, KW04-9002
六角板手(Hex Key) KW04-9081
KW04-9112
管道與門鎖工具12件組
內含尺寸
3/4"(19mm), 7/8"(22mm), 1-1/8"(29mm),
1-3/8"(35mm), 1-1/2"(38mm), 1-3/4"(44mm),
2"(51mm), 2-1/4"(57mm), 2-1/2"(64mm)
鑽軸 (Arbor) KW04-9002, KW04-9006
六角板手(Hex Key) KW04-9081
KW04-9114
複合應用工具14件組
內含尺寸
3/4"(19mm), 7/8"(22mm), 1"(25mm), 1-1/4"(32mm),
1-3/8"(35mm), 1-1/2"(38mm), 1-3/4"(44mm),
2"(51mm), 2-1/4"(57mm), 2-1/2"(64mm) & 3"(76mm)
鑽軸 (Arbor) KW04-9001, KW04-9002
六角板手(Hex Key) KW04-9081
KW04-9116
專業級電工套件16件組
內含尺寸
7/8"(22mm), 1-1/8"(29mm), 1-3/8"(35mm), 1-1/2"(38mm),
1-3/4"(44mm), 2"(51mm), 2-1/2"(64mm), 3"(76mm),
3-5/8"(92mm), 4-1/8"(105mm), 4-1/2"(114mm)
鑽軸 (Arbor) KW04-9001, KW04-9002, KW04-9009
Extension bar: KW04-9091
六角板手(Hex Key) KW04-9081
KW04-9120
工業級複合應用20件組
內含尺寸
3/4"(19mm), 7/8"(22mm), 1-1/8"(29mm),
1-3/8"(35mm), 1-1/2"(38mm), 1-3/4"(44mm)
2"(51mm), 2-1/4"(57mm), 2-1/2"(64mm),
3"(76mm), 3-1/4"(83mm), 3-5/8"(92mm),
3-3/4"(95mm), 4-1/8"(105mm), 4-1/2"(114mm)
鑽軸 (Arbor) KW04-9001, KW04-9002, KW04-9009
六角板手(Hex Key) KW04-9081
延長桿(Extension Bar)
KW04-9091
KW04-9136
通路全套展示 36件組
內含尺寸
5/8"(16mm), 3/4"(19mm), 7/8"(22mm), 1"(25mm), 1-1/8"(29mm),
1-1/4"(32mm), 1-1/2"(38mm), 1-5/8"(41mm), 1-11/16"(43mm),
1-3/4"(44mm), 1-7/8"(48mm), 2"(51mm), 2-1/8"(54mm),
2-1/4"(57mm), 2-3/8"(60mm), 2-1/2"(64mm), 2-5/8"(67mm),
2-3/4"(70mm), 3"(76mm), 3-1/2"(89mm), 3-5/8"(92mm),
3-3/4"(95mm), 4"(102mm) , 4-1/8"(105mm), 4-1/2"(114mm)
鑽軸 (Arbor) KW04-9001, KW04-9002, KW04-9005, KW04-9006,
KW04-9007, KW04-9009, KW04-9010
高速鋼鑽頭(HSS Drill) KW04-9083 & KW04-9084
轉接頭(Adapter) KW04-9080
延長桿(Extension Bar) KW04-9091
